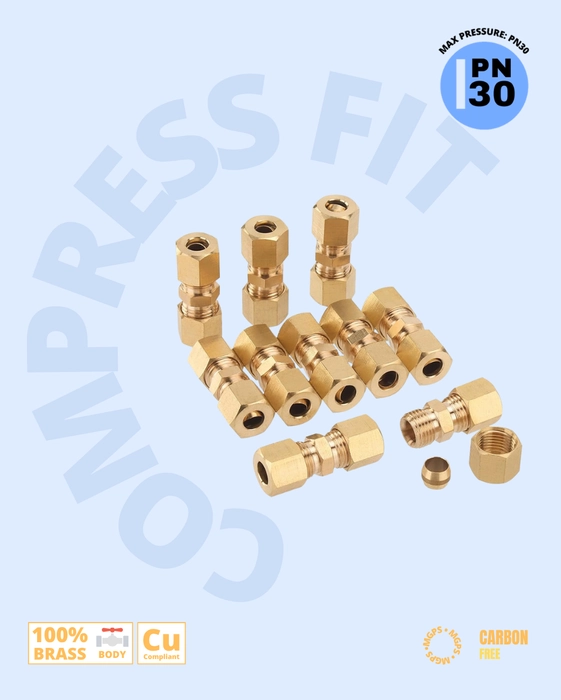

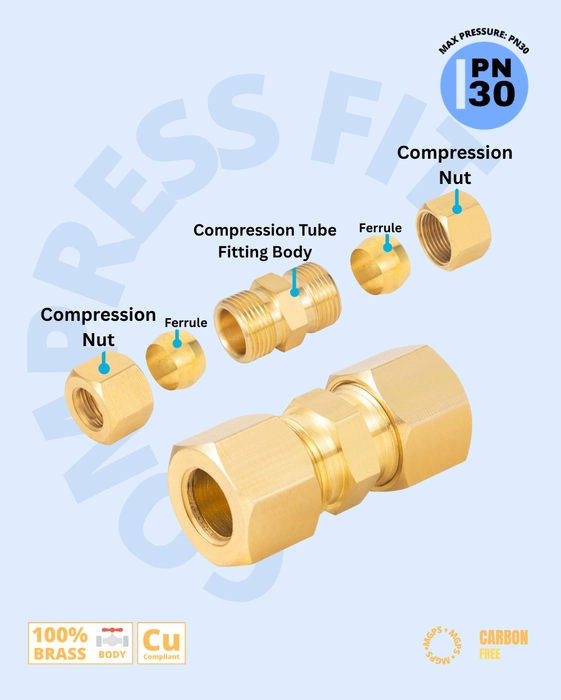

CompressFit Copper Alloy Compression Fittings
Sort by
CompressFit Copper Alloy Compression Fittings
Product details

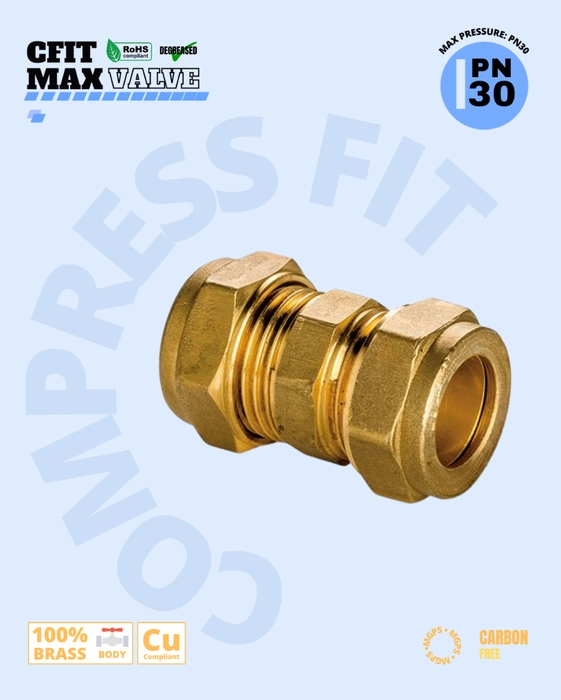

Ensure 100% Leakproof Joints with CompressFit Compression Tee. No brazing or welding required. We offer a variety of products in our CompressFit Copper Alloy Compression Fittings Product Range. Sizes available from 10mm to 108mm. Suitable for Plumbing, Water Systems, Sanitations, Chilled Water Plants, MGPS, etc. Our products are porudly made in India, and exported globally.
| OD (in) |
NPT Thread |
F (in) |
L (in) |
M (in) |
Flow Dia. (D) |
Weight (Gram) |
| 1/8 | 1/8 | 7/16 | 0.97 | 0.77 | 0.094 | 14.73 |
| 3/16 | 1/8 | 7/16 | 1.08 | 0.84 | 0.125 | 15.00 |
| 3/16 | 1/4 | 9/16 | 1.27 | 1.03 | 0.125 | 23.77 |
| 1/4 | 1/8 | 7/16 | 1.1 | 0.86 | 0.188 | 17.29 |
| 1/4 | 1/4 | 9/16 | 1.3 | 1.06 | 0.188 | 26.08 |
| 1/4 | 3/8 | 11/16 | 1.27 | 1.03 | 0.188 | 33.99 |
| 1/4 | 1/2 | 7/8 | 1.55 | 1.31 | 0.188 | 55.84 |
| 5/16 | 1/8 | 1/2 | 1.15 | 0.89 | 0.234 | 20.65 |
| 5/16 | 1/4 | 9/16 | 1.33 | 1.07 | 0.25 | 27.22 |
| 3/8 | 1/8 | 9/16 | 1.25 | 0.97 | 0.25 | 25.46 |
| 3/8 | 1/4 | 9/16 | 1.42 | 1.14 | 0.312 | 30.6 |
| 3/8 | 3/8 | 11/16 | 1.44 | 1.16 | 0.312 | 40.11 |
| 3/8 | 1/2 | 7/8 | 1.53 | 1.25 | 0.312 | 53.22 |
| 1/2 | 1/4 | 11/16 | 1.62 | 1.22 | 0.312 | 51.99 |
| 1/2 | 3/8 | 11/16 | 1.6 | 1.2 | 0.406 | 55.24 |
| 1/2 | 1/2 | 7/8 | 1.71 | 1.31 | 0.406 | 69.43 |
