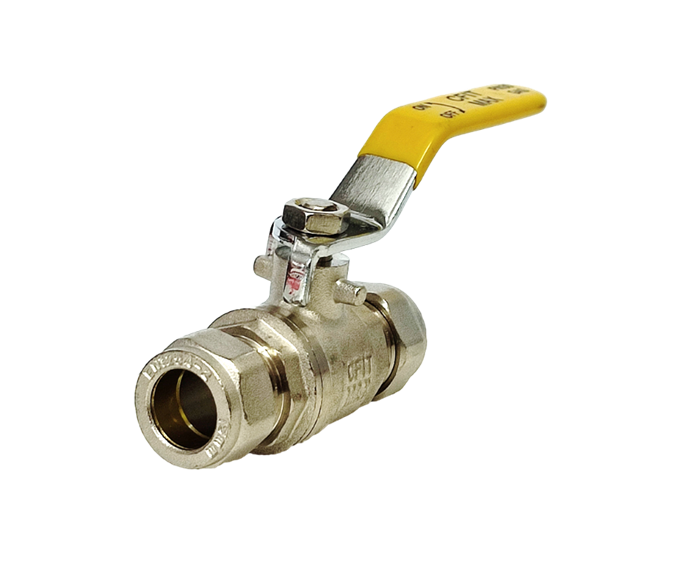

COMPRESSION ISOLATION VALVE
MAX-UK015
Welcome to CFITMAX - an Ultimate Care Elite Quality. Our specialization is custom isolation ball valves dedicated to Medical Gas Pipeline System (MGPS), which is required to be of a high standard as per medical industry requirements. We are an authorized vendor, supplier, distributor and wholesaler and it is our understanding that safety and consistency are the most important attributes and every product shipped by us is tested and packed with medical grade perfection. These 12MM valves are already very common in industrial centers, such as Coimbatore and Chennai and we have the honor of working with several hospitals and other healthcare facilities to serve their facility requirements

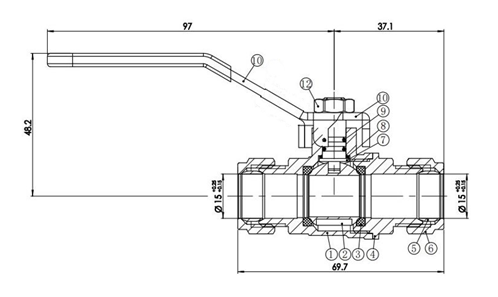

MATERIAL TEST SPECIFICATIONS
Body: 100% Brass
Compression Olive: Brass
Seal: PTFE
Ball: Chrome Plated Brass
O-Ring: NBR
Stem: Brass
Handle: NBR
Nut: Steel
BS864/2 Compression Nut: Steel
SPECIFICATIONS
PN 30 Rating
Compression Ends to BS864/2
Produced EN 1254-2 Equivalent
Full Bore
Lever Type Operation
Quarter Turn Operation
High Quality PTFE Seal
Nickel Plated Finish
Maximum pressure Conditions:
30 Bar – Temp up to 30° C
8 Bar – Temp up to 120° C
|
Standard Packing |
|
|
Size |
15mm |
|
Item No. |
MAX-UK012 |
|
Inner Box Contains |
10 |
|
Outer Box Contains |
120 |
