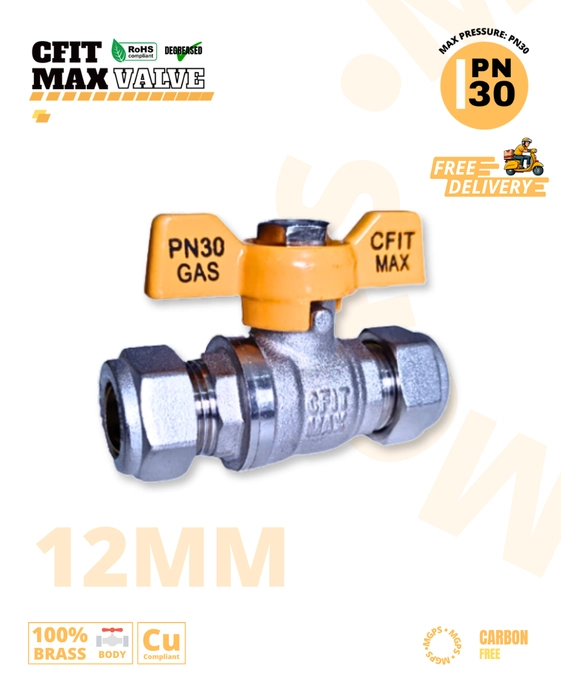

CFIT Max 12MM Isolation Valve for Medical Gas Pipeline Systems India

CFIT Max 12MM Isolation Valve for Medical Gas Pipeline Systems India



badge
badge
badge

Product details



CFITMAX Compression Isolation Valve

 Key Features:

Full-Bore Design – Maximum flow efficiency

Quarter-Turn Operation – Smooth & reliable control

Nickel-Plated Finish – Extra protection against corrosion

MGPS, ROHS & CE Certified – Compliant with industry safety standards






Product Features & Materials



Component

Material

Body

100% Brass

Ball

Chrome-Plated Brass

Seal

PTFE (High-Quality)

O-Ring

NBR

Handle

Lever / T-Handle

Compression Standard

BS864/2, EN 1254-2

Finish

Nickel-Plated






Why Choose CFITMAX?

Government-Recognized & Tender-Approved
Long-Life Warranty & Free Replacements
Test Reports Available Upon Request






Available Sizes & Pressure Ratings



Size

Max Pressure (30°C)

Max Pressure (120°C)

Packaging

12mm

30 Bar

8 Bar

Inner: 12 / Outer: 144

15mm

30 Bar

8 Bar

Inner: 10 / Outer: 120

22mm

30 Bar

8 Bar

Inner: 12 / Outer: 72

28mm

30 Bar

8 Bar

Inner: 8 / Outer: 48

35mm

30 Bar

8 Bar

Inner: 6 / Outer: 36

42mm

30 Bar

8 Bar

Inner: 5 / Outer: 20

54mm

30 Bar

8 Bar

Inner: 2 / Outer: 8

76mm

30 Bar

8 Bar

Inner: 1 / Outer: 4






Ideal for Use In:



Medical Gas Pipeline Systems (MGPS)
Plumbing & Water Supply Networks
HVAC Systems & Industrial Applications






CFITMAX – The Ultimate Isolation Ball Valve for MGPS

The CFIT Max Isolation Ball Valves are an inseparable component of the Medical Gas Pipeline Systems (MGPS) and are widely combined and applied combo-bracket in a broad spectrum of medical infrastructure and health care. They find use in hospitals, ICU, operation theatres, dental clinics, diagnostic laboratories, research centres, pharmaceutical and biotechnology plants, ambulances, mobile medical vans and mega projects and healthcare infrastructural projects. These are the very important valves involved in the regulation and control of the flow of such important gases as oxygen, nitrous oxide, compressed air, and vacuum in a medical institution.

Isolation Ball Valves are fitted mainly on the branch lines of MGPS to isolate areas, eg. patient rooms, patient wards or whole area in the case of maintenance, up gradation and emergency. These have a quarter-turn, manually operated valve whereby healthcare personnel can switch off the flow of gas without interfering with other components of the system and thus acting on it with haste and safety. Such valves are traditionally installed in valve boxes or hidden wall surfaces making them conveniently available and sufficiently in-built to integrate medical surroundings.

The 12mm size is in particular popularity since they are compact in size and they are suitable in the localized zone controls. The CFIT Max valves are readily accepted and practiced in both the developed and developing healthcare system countries. They are to the international standards such as ISO 7396-1, HTM 02-01 (UK) N, NFP 99 (USA), CSA Z7396 (Canada), DIN (Germany), AS 2896 (Australia) and also they are compatible with NABH guidelines in India. With the work being installed in the various projects across India, the UK, USA, Canada, Germany, UAE, Saudi Arabia, Qatar, Singapore, Malaysia, South Africa, and other parts, CFIT Max Valves have gained the reputation of quality of build and medical functioning. They have a 100 percent bore internal passageway and very little does it have any pressure drop with maximum flow because of this design, made of nickel plated brass, to bring about superior corrosion resistance, and durability. The installation of these is compression-fit and flame-free which guarantees faster and safer assembly of these especially in sensitive medical areas. Having the ROHS, CE and MGPS certification, CFIT Max Valves bring unmatched reliability, safety and efficiency that cannot be matched by any other valve in the modern MGPS installation.
